Vertical standing seam and horizontal panel sidewall systems, standing seam and flat panel roof insulation, and specialty vessel work — designed, manufactured, and installed by Globaltherm, a TF Warren Company, for both heated and cold storage service.
Globaltherm, a TF Warren Company, began as the tank insulation service inside the group behind Tarsco Bolted Tank — then grew into a standalone company covering spheres, vessels, drums, ductwork, and specialty applications. Adding them to our line means the insulation system is engineered against the same operating conditions as the tank it wraps, on the same coordinated specification.
Panels are manufactured to the operating conditions you actually run and to your tank’s own radius and height — so field crews assemble a system that was engineered, not improvised around whatever showed up on the truck.

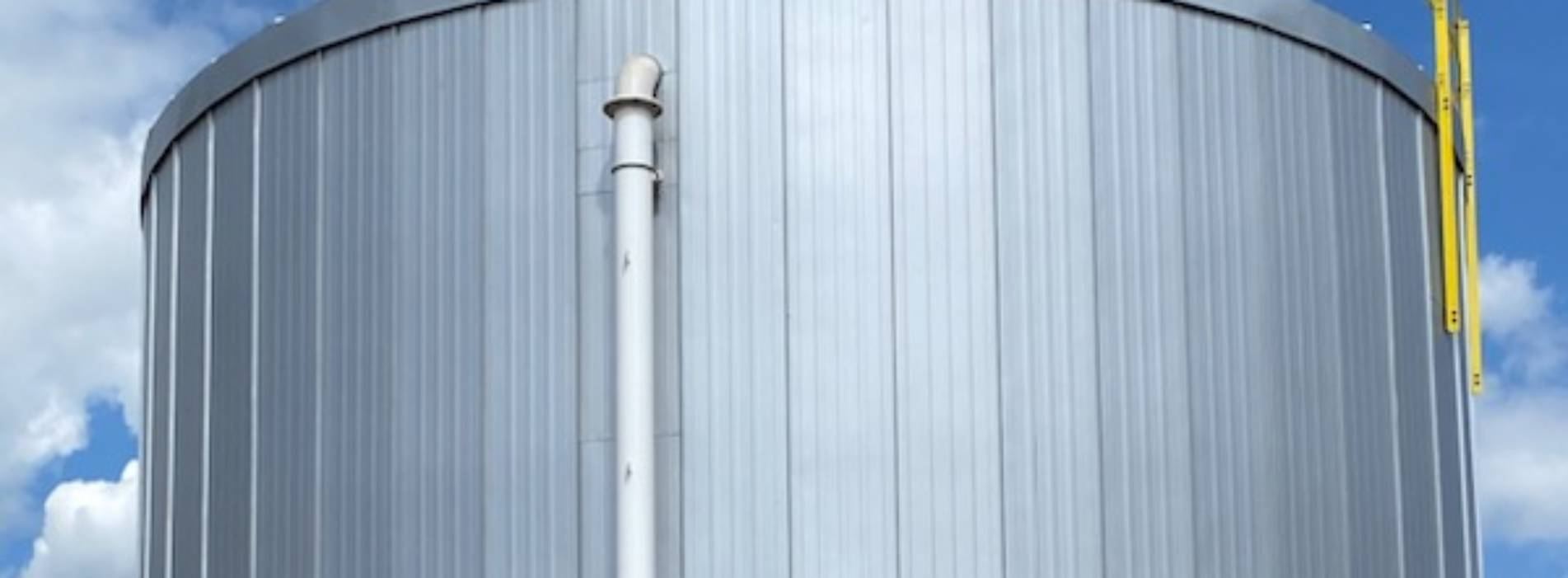

Foil-faced polyisocyanurate foam laminated to stucco-embossed aluminum sheathing with a polyester paint finish. Panels are secured by an internal cable-and-clip system hidden within each standing seam, and the design accommodates any tank height.

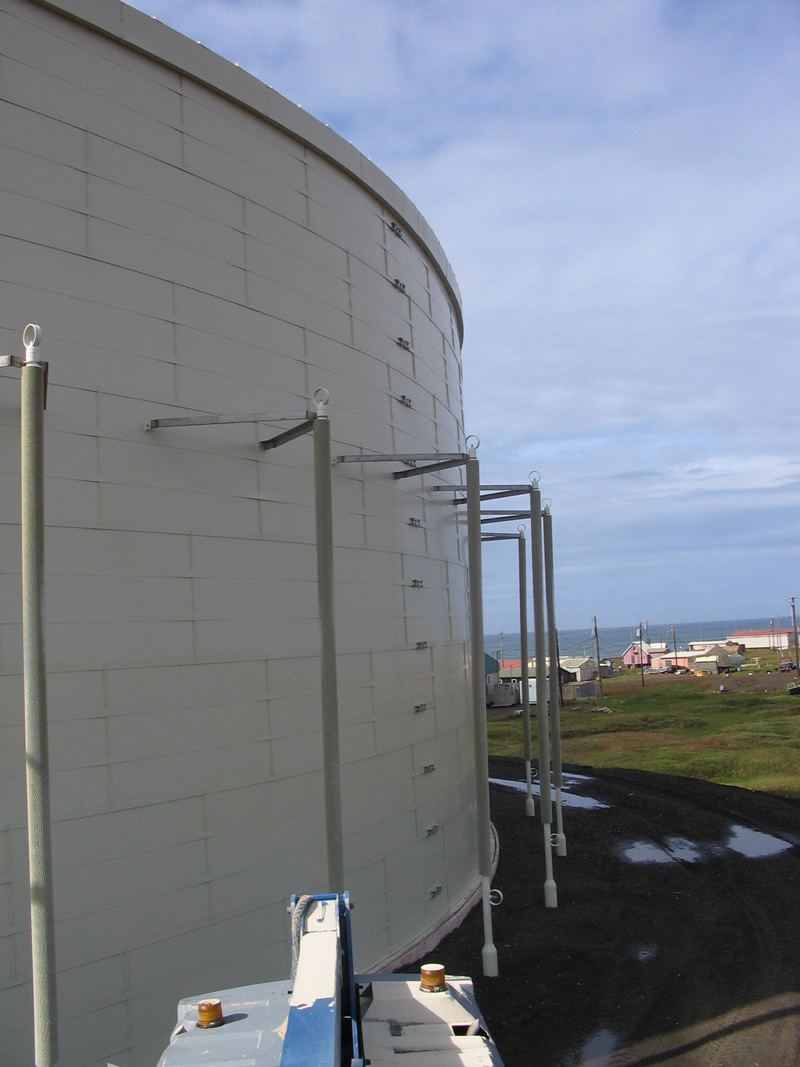

Foil-faced polyiso laminated to metal sheathing, factory-curved to your tank’s radius and banded with 3-inch aluminum or stainless steel on two-foot vertical centers. Individual panels lift out, so the shell stays reachable for inspection or repair.

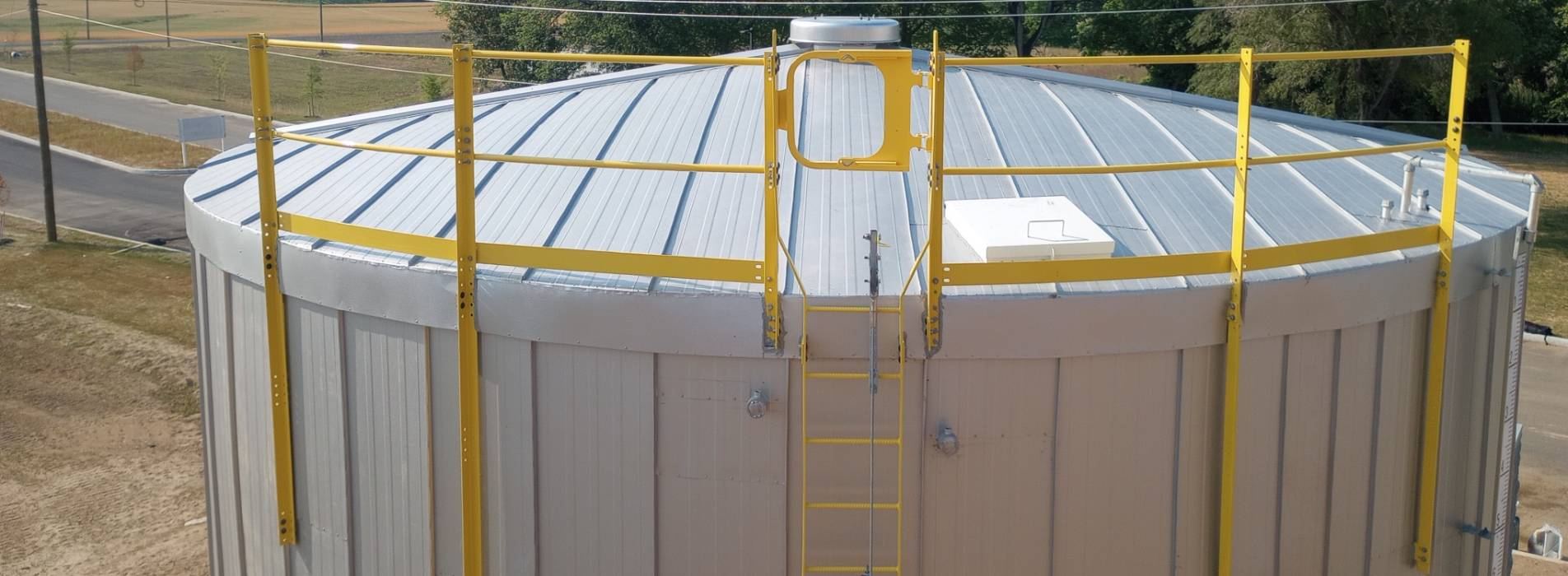

A radial standing seam metal roof system that installs over most suitable insulation materials on virtually any roof shape, plus flat panels in gore and trapezoidal designs. Welded or non-welded plate attachments make in-service installation possible.
Insulation systems for spheres, pressure vessels, and drums, with internal or external attachment methods selected to suit the shape and the application rather than forced onto one standard detail.
Emissions hot air ductwork, digesters, precipitators, reactors, and other specialty applications — including specialized insulation support systems designed for extreme cyclic duty such as coker units in refining service.
Chilled water thermal energy storage systems where holding the cold is the whole point, plus fire protection water storage — where the insulation system can be designed to meet NFPA 22 requirements.
Each system is manufactured to meet or exceed the specific operating conditions of the tank it goes on — the same failure-mode-first thinking we bring to coatings, applied to heat loss instead of corrosion.
Insulation system designs incorporate many choices of core material, including composites, so the system suits the temperature range and the asset rather than the other way around.
Insulation systems are installed by factory-trained direct employees rather than whoever a subcontractor could staff that week — the same accountability we insist on for tank erection.
Tanks, covers, coatings, foundations, instrumentation, heat transfer equipment, and insulation combine in a single configured quote. Give us 24 hours and a project scope.
