Bolted steel tanks. Configured to your spec.

Bolted fusion-bonded epoxy and stainless steel tanks for water, wastewater, and industrial service. Configure capacity, coating, foundation, and accessories — and get an instant budget number refined by our engineering team within 24 hours.

Build Your Quote → Talk to an Expert

5K–5MG

Capacity Range

3K+

Tanks Installed

USA

Stocked Steel

24h

Quote Turnaround

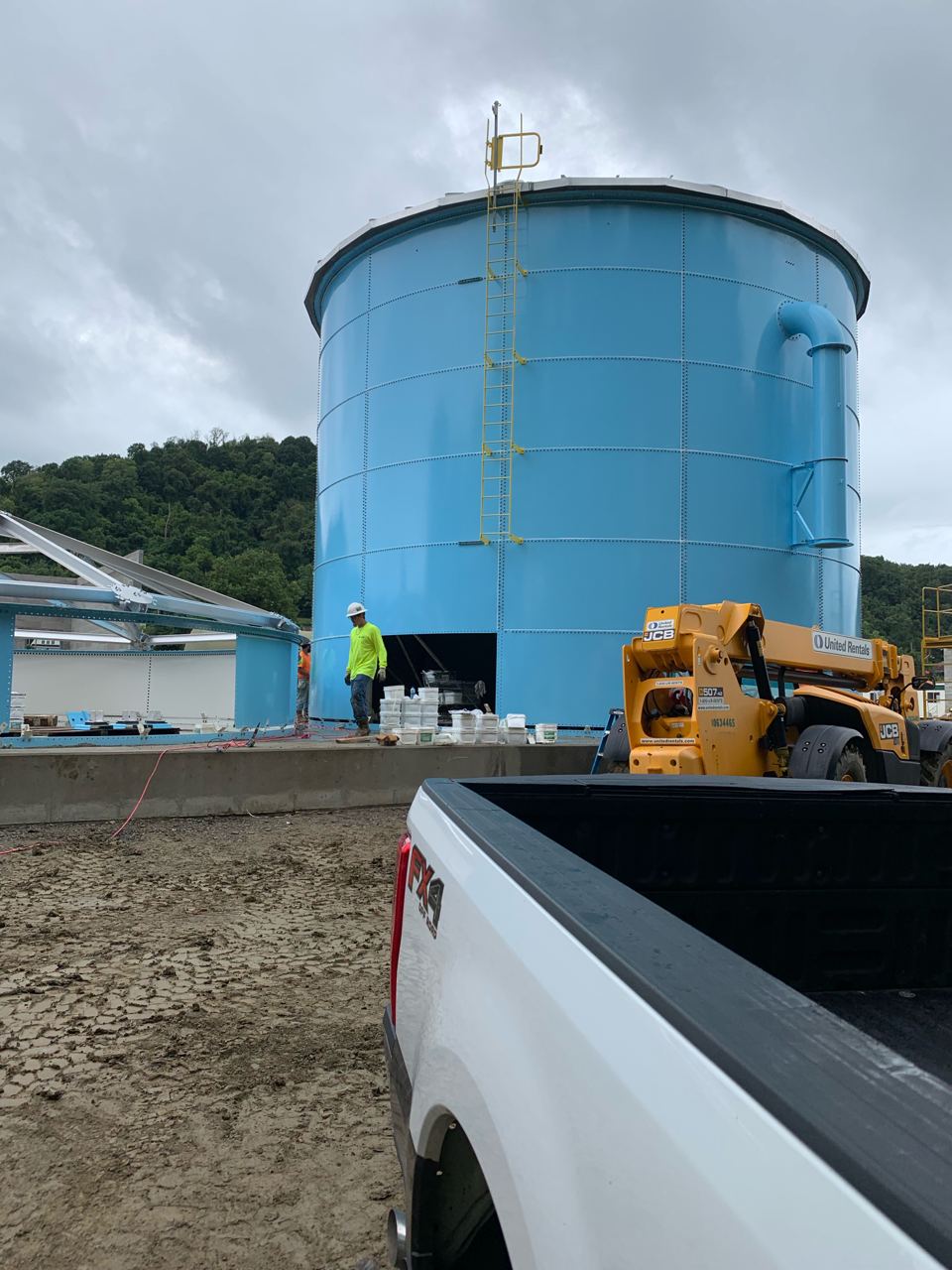

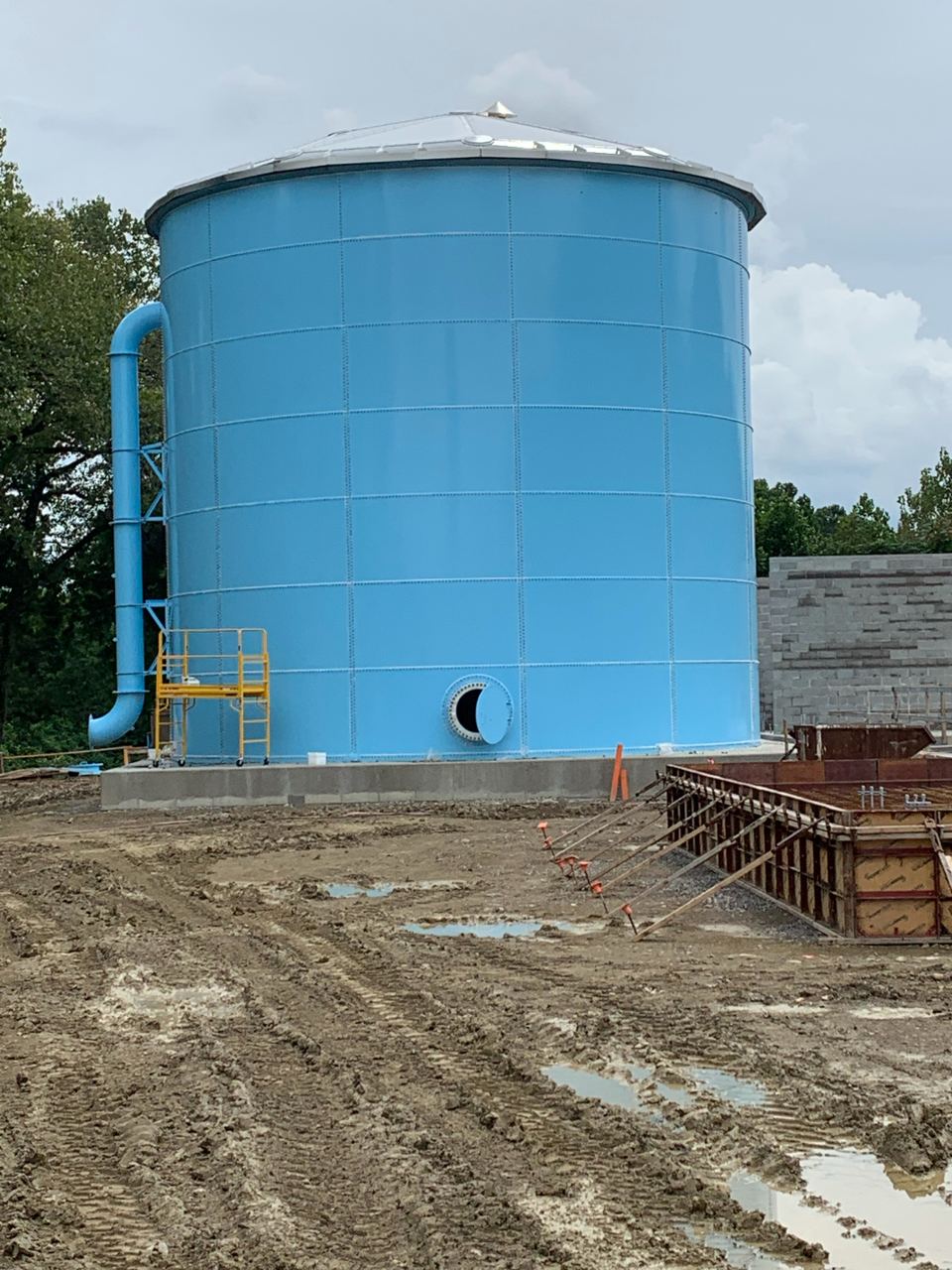

Blue bolted steel tank under construction beside site equipment

Standard

AWWA D103

Tank Offerings

Two offerings. One source.

Fusion-bonded epoxy for water and process service. Stainless steel for chloride-bearing or food-grade chemistry. Pick the offering that matches your service, then build the quote.

AWWA D103

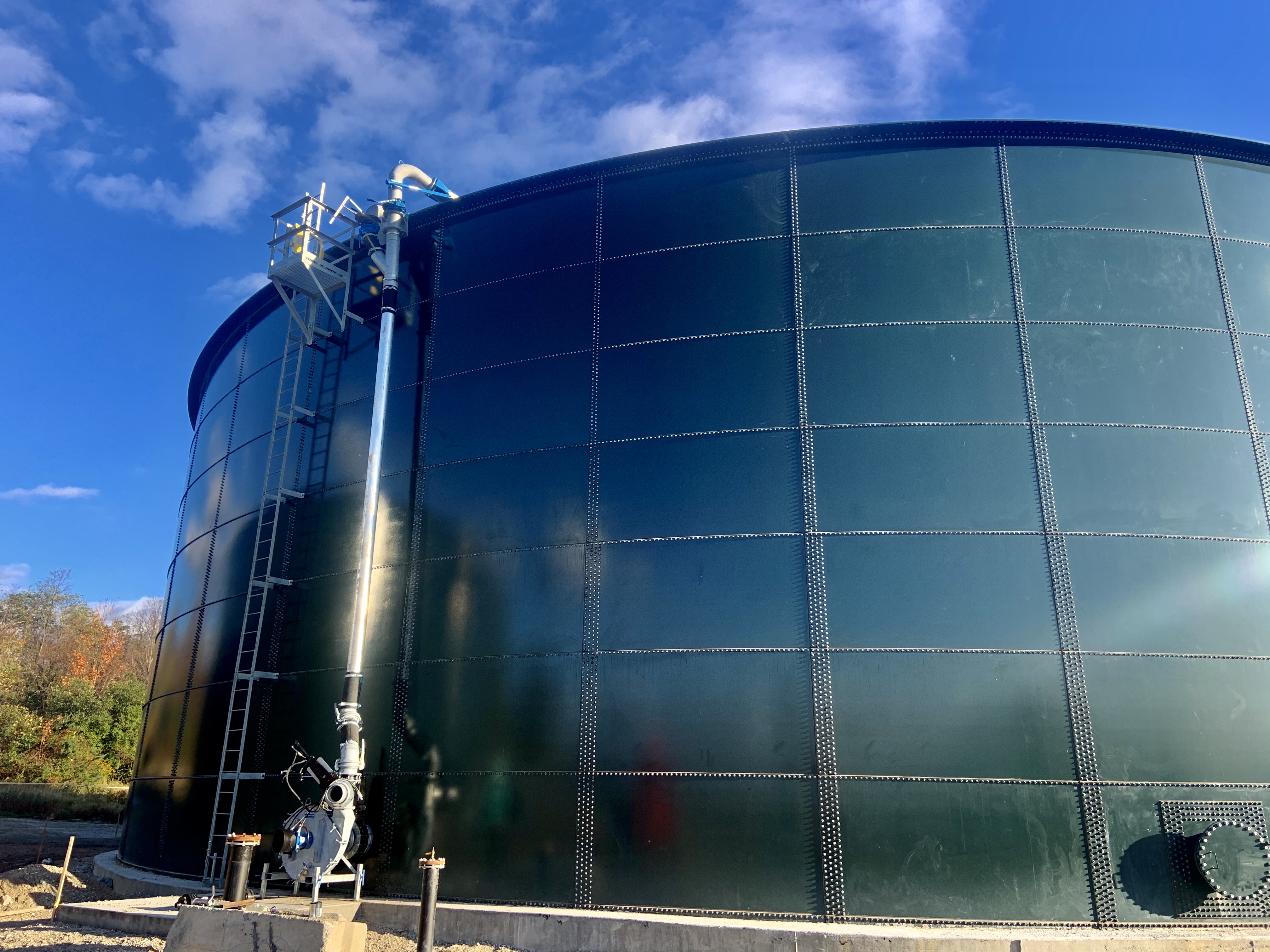

Bolted Fusion-Bonded Epoxy

FBE Powder Coated · Carbon Steel

Shop-applied epoxy powder fused to carbon steel panels at 425°F — a reliable barrier at moderate cost. NSF 61 certified variants for potable water. The workhorse for water, raw water, and process duty.

Capacity5K – 5MG
ServiceWater / Process / Storage
StandardAWWA D103, NSF 61
Service Life20–30 years

Configure / Inquire →

ASTM A240

Bolted Stainless Steel

Type 304 / Type 316 · Bare

304 for food-grade and general chemical service; 316 for chloride-bearing, brine, or biopharma duty. No coating — the passive layer is the protection. Premium first cost, lowest lifecycle cost.

Capacity5K – 5MG
ServiceFood / Pharma / Chemical
StandardASTM A240, AWWA D103
Service Life50+ years

Configure / Inquire →

Why It Matters

Match the material to the service.

Material selection drives service life more than any other decision. Specified wrong, you are refurbishing in five years. Specified right, the tank outlives the facility — which is exactly where our forensic background earns its keep.

Forensic Spec Review
Every configuration is validated against your actual process chemistry, pH, and temperature — not just a datasheet checkbox.
PE-Stamped Submittals
Foundation, shell, anchor, and accessory drawings stamped by the licensed engineer for your project's jurisdiction.
Domestic Stocked Steel
Carbon-steel inventory held in the U.S. keeps schedule risk lower than offshore-sourced competitors.

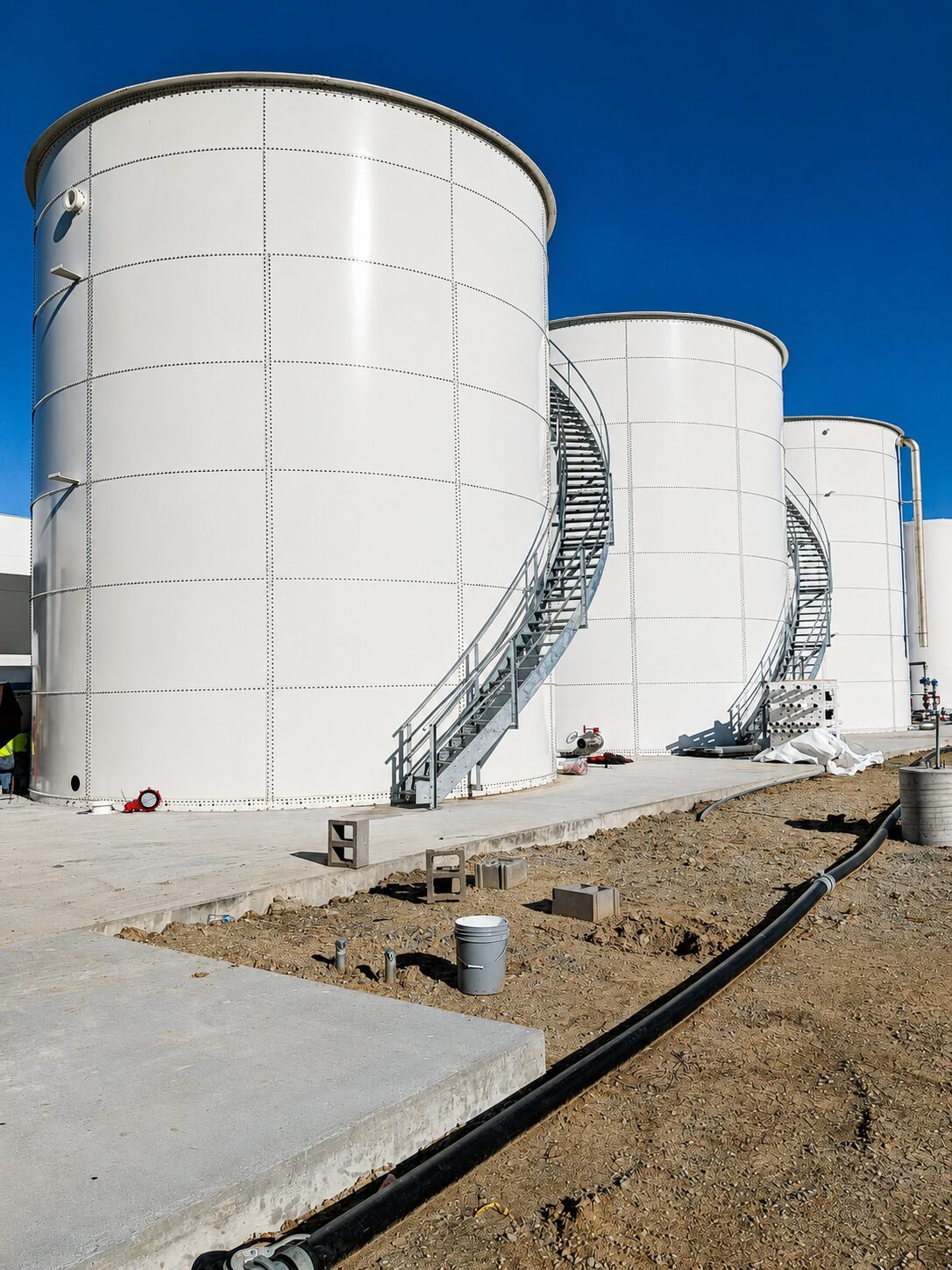

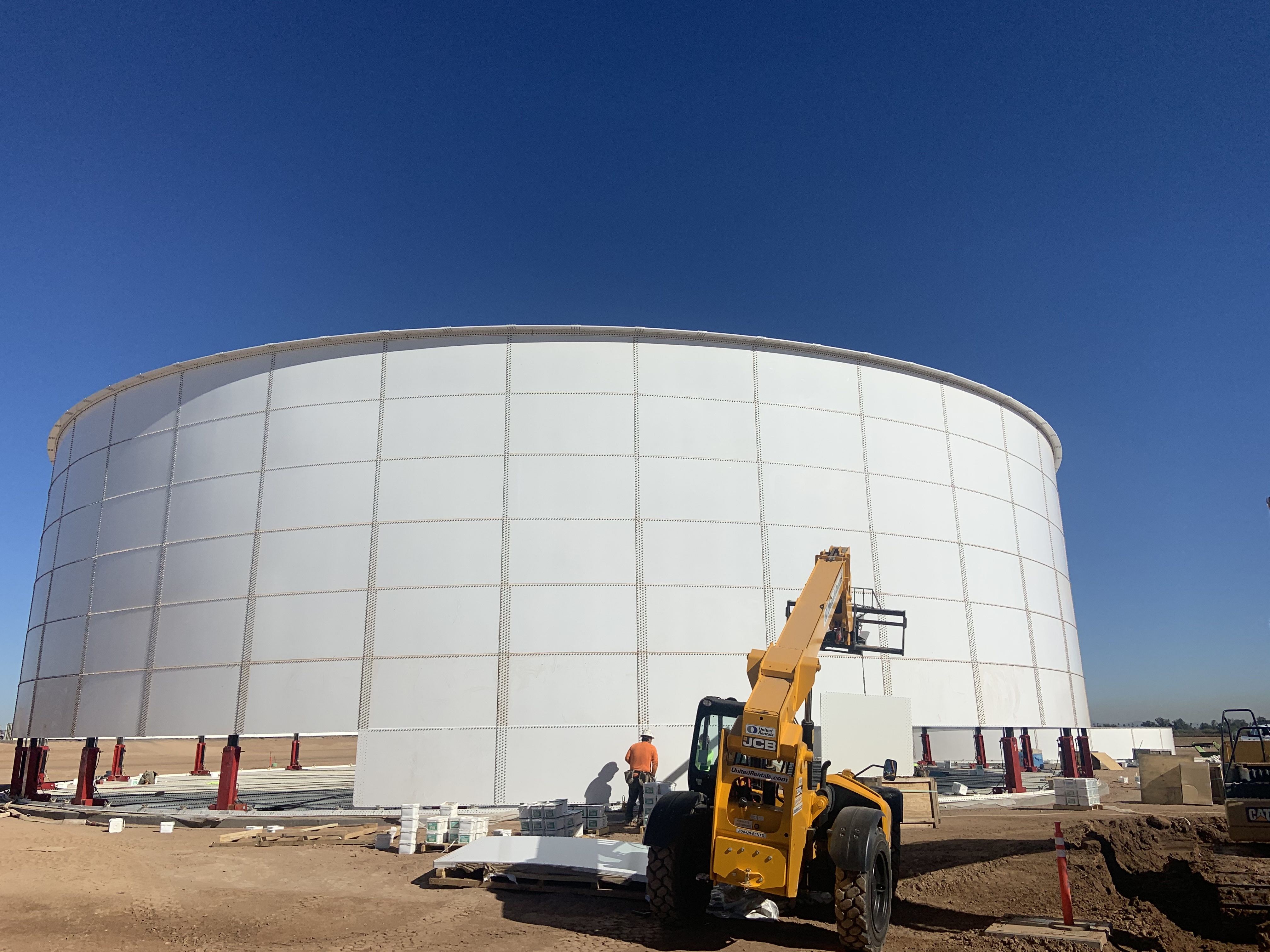

Bolted steel tank being installed with a crane on an active jobsite

Field-Proven

Built. Delivered. In service.

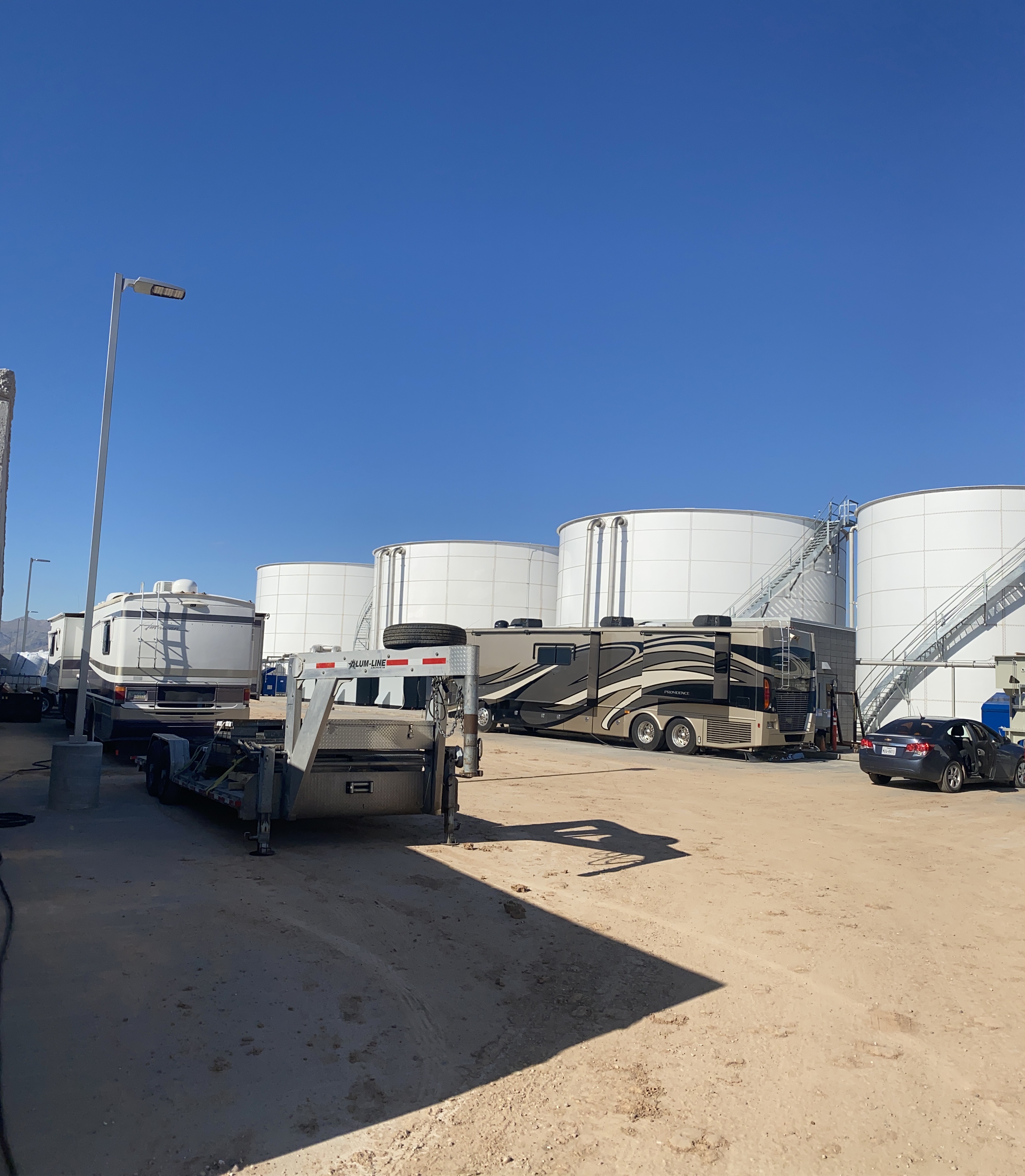

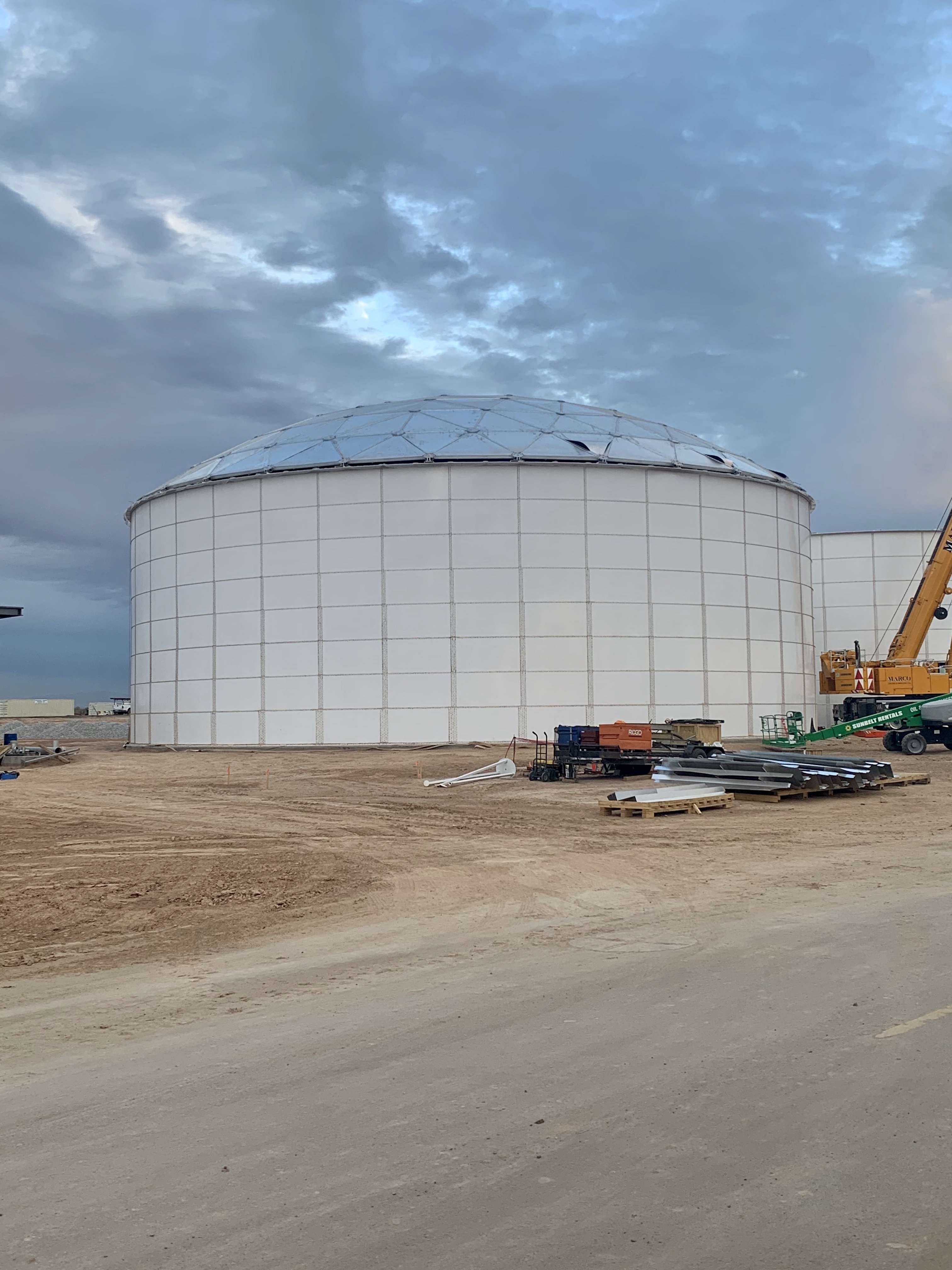

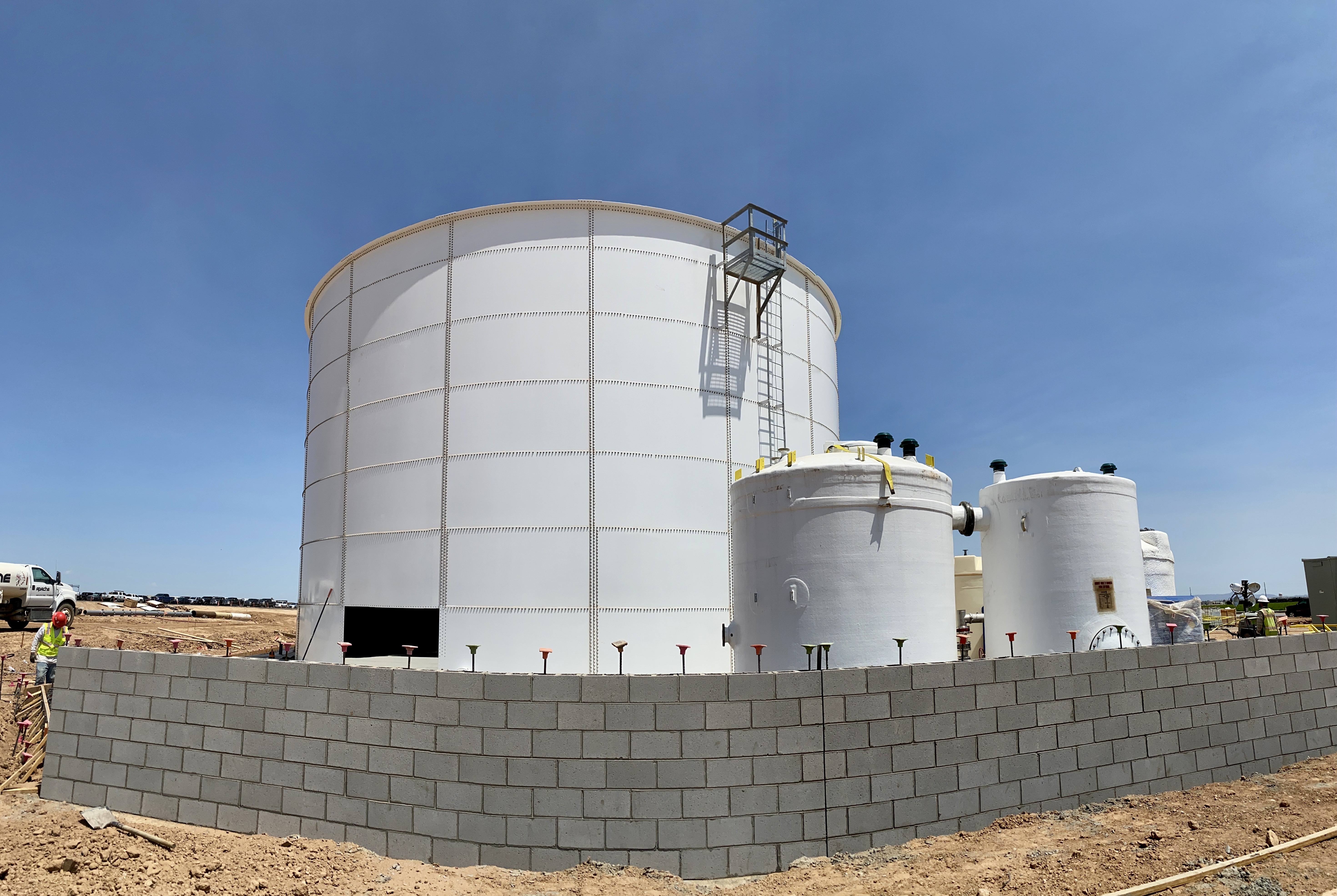

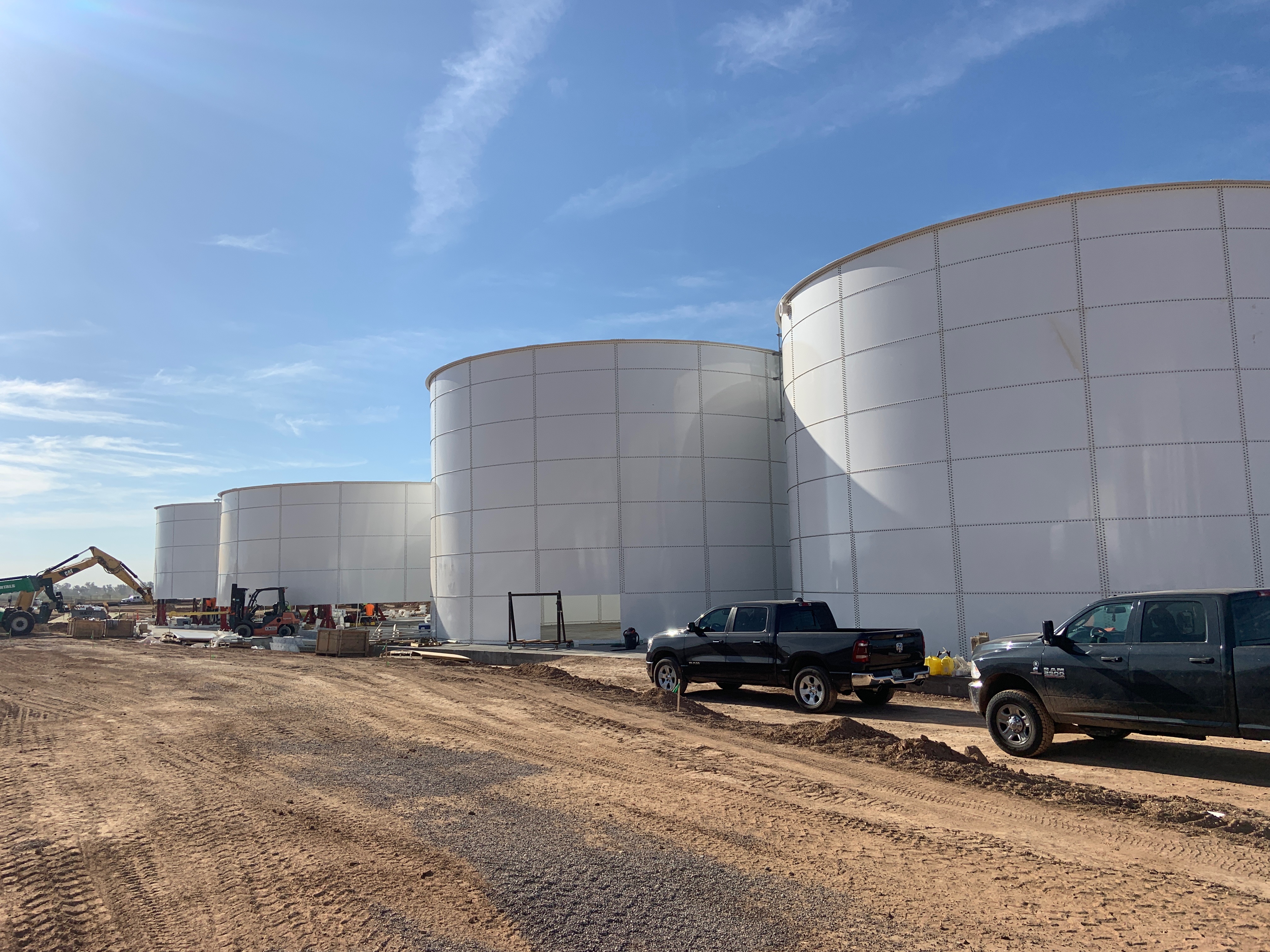

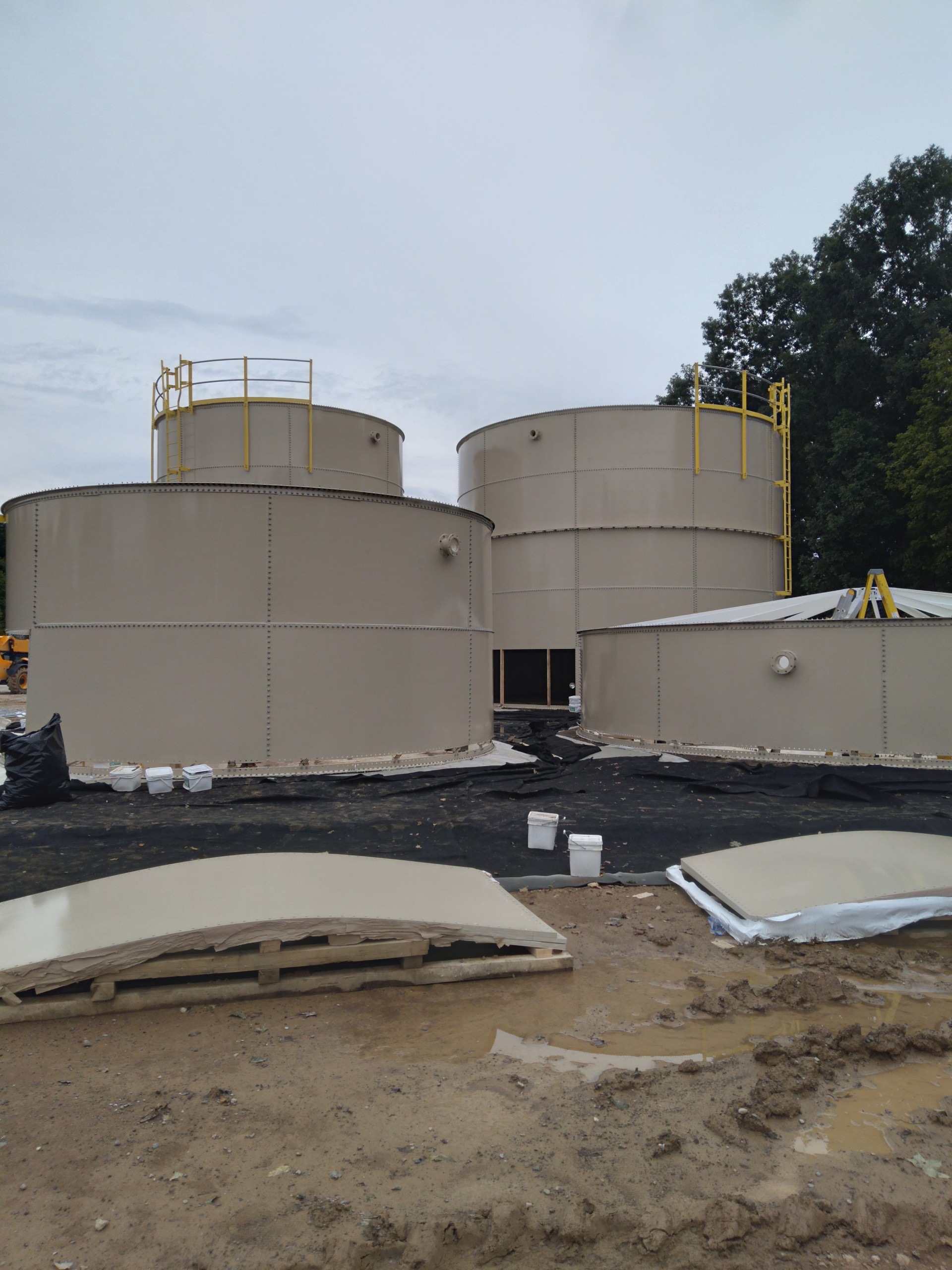

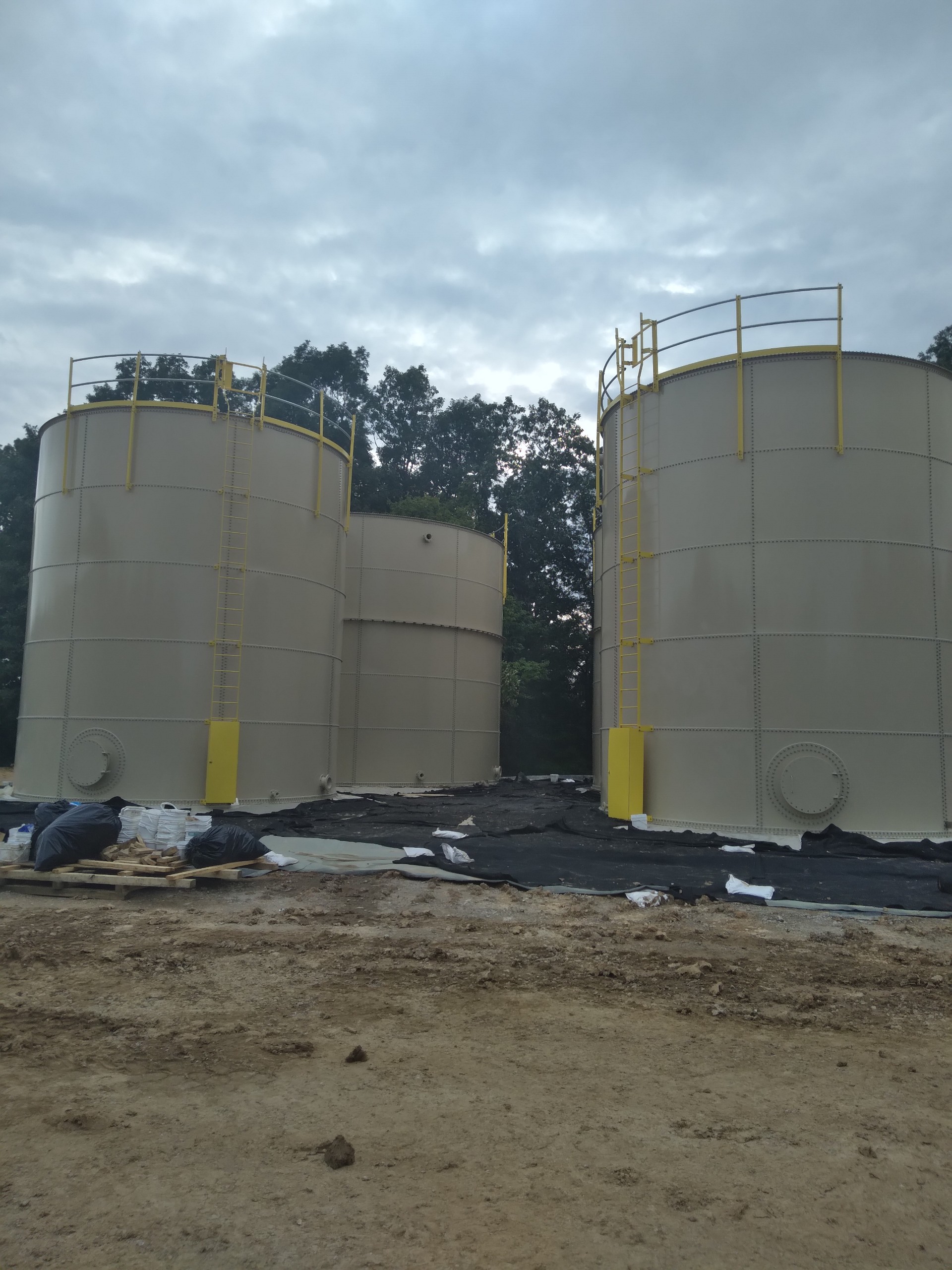

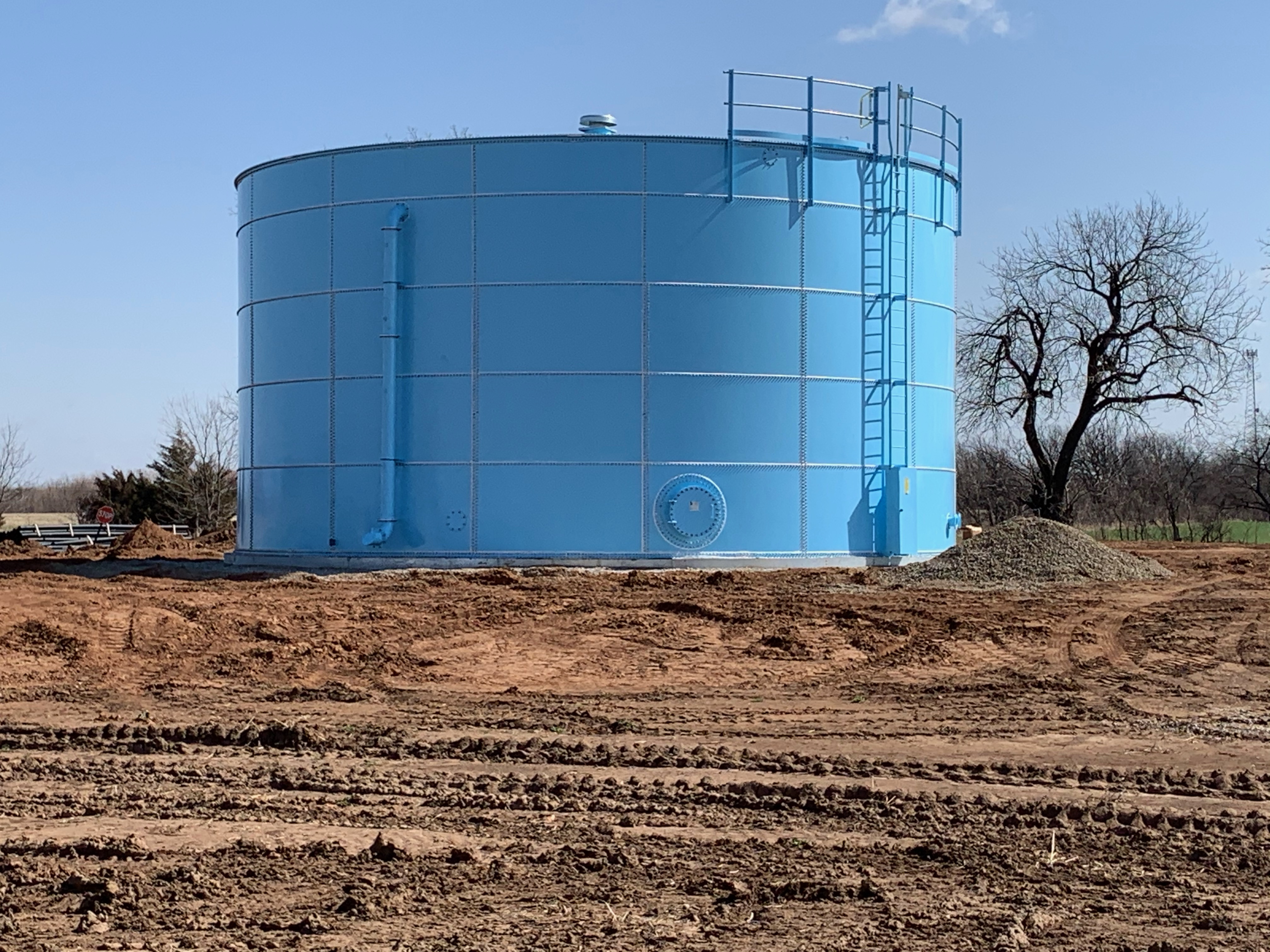

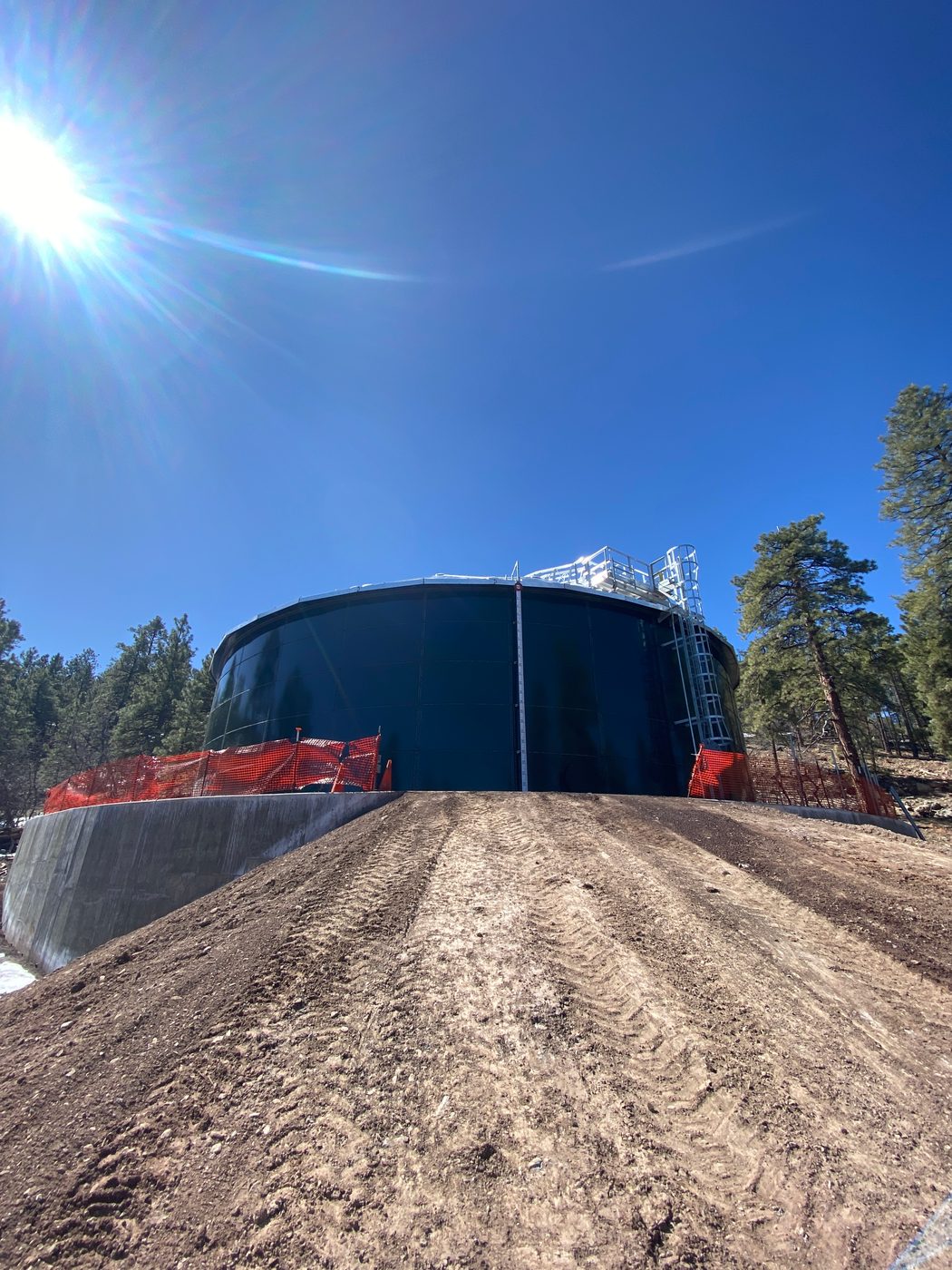

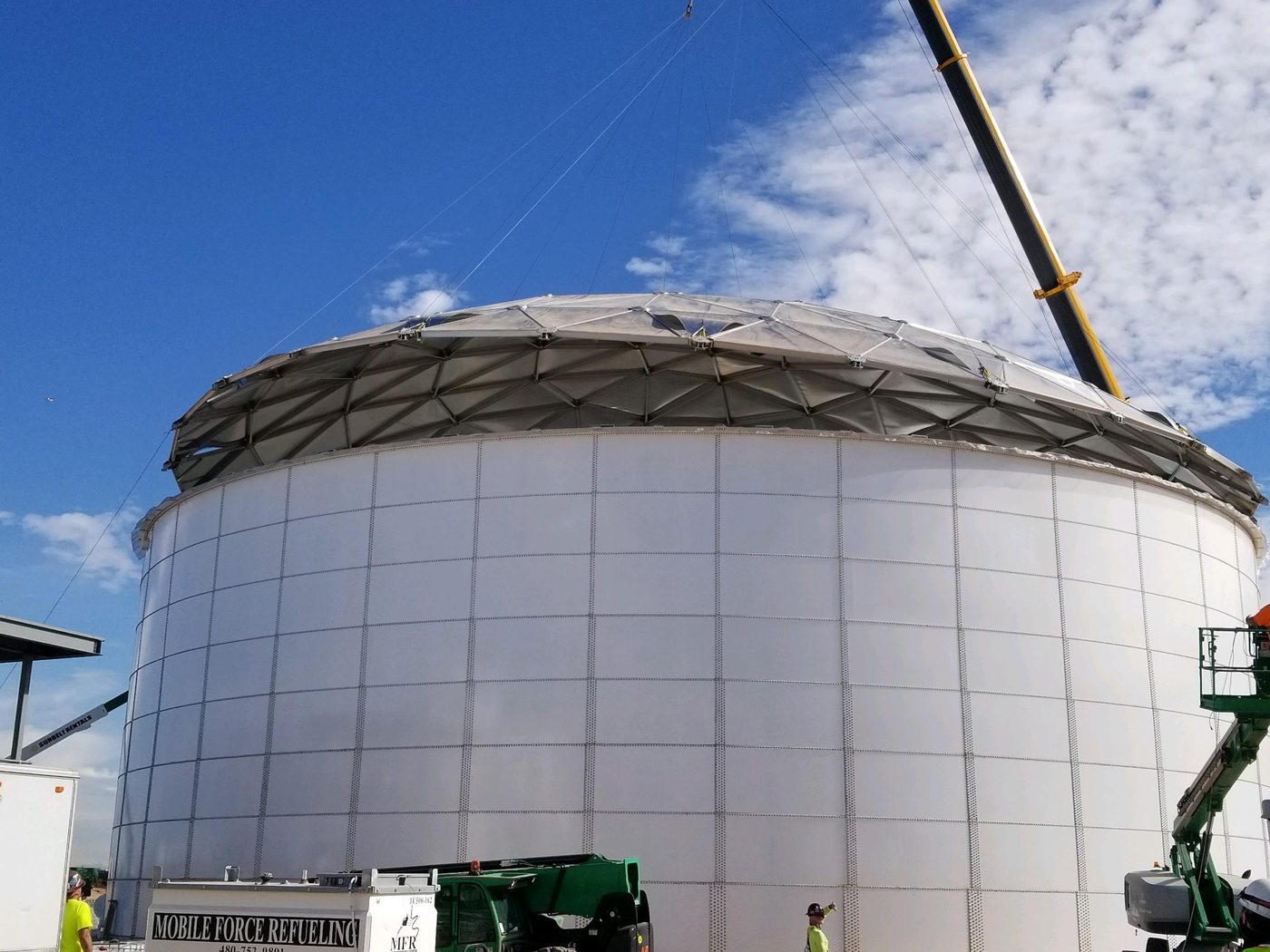

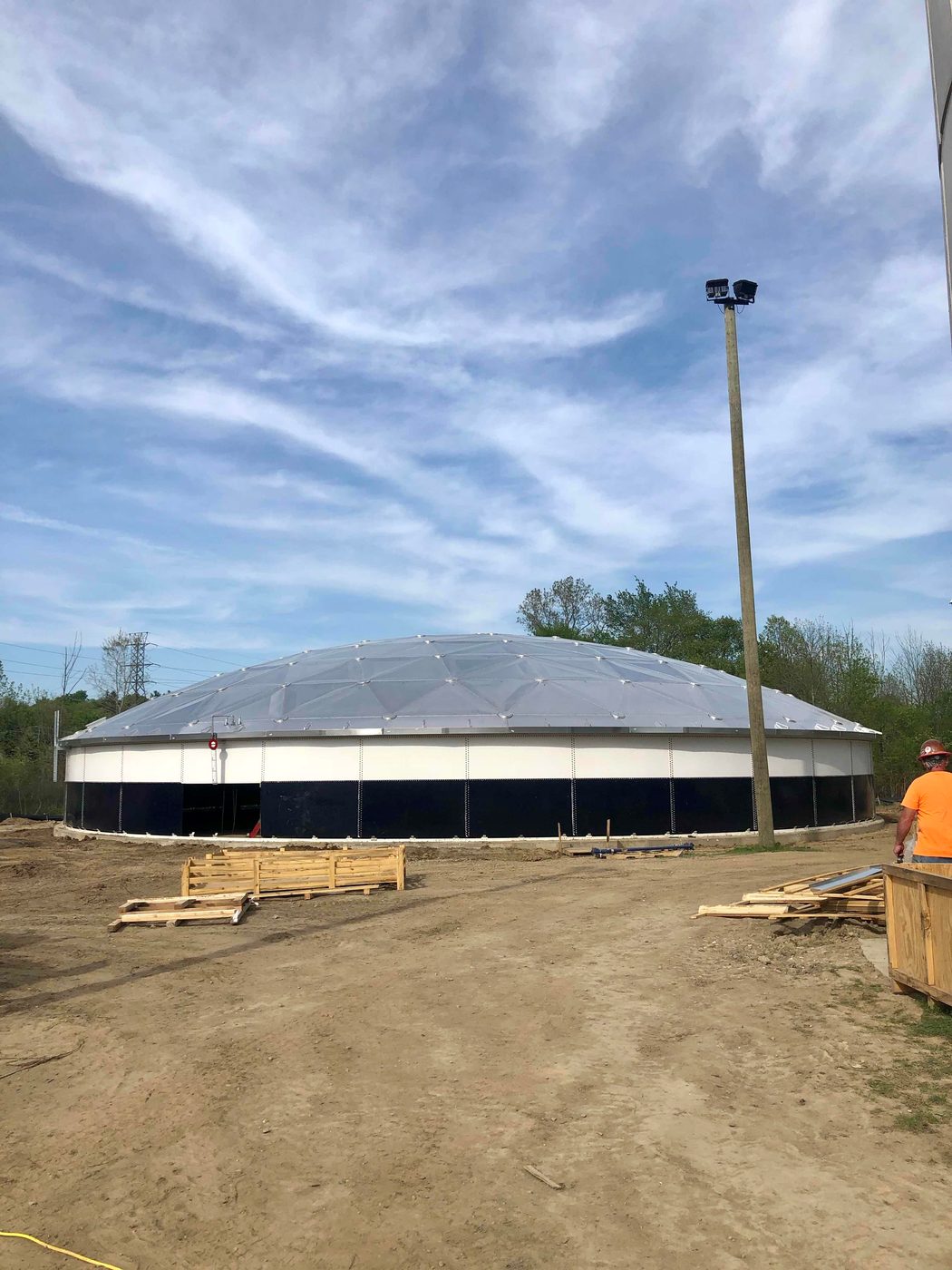

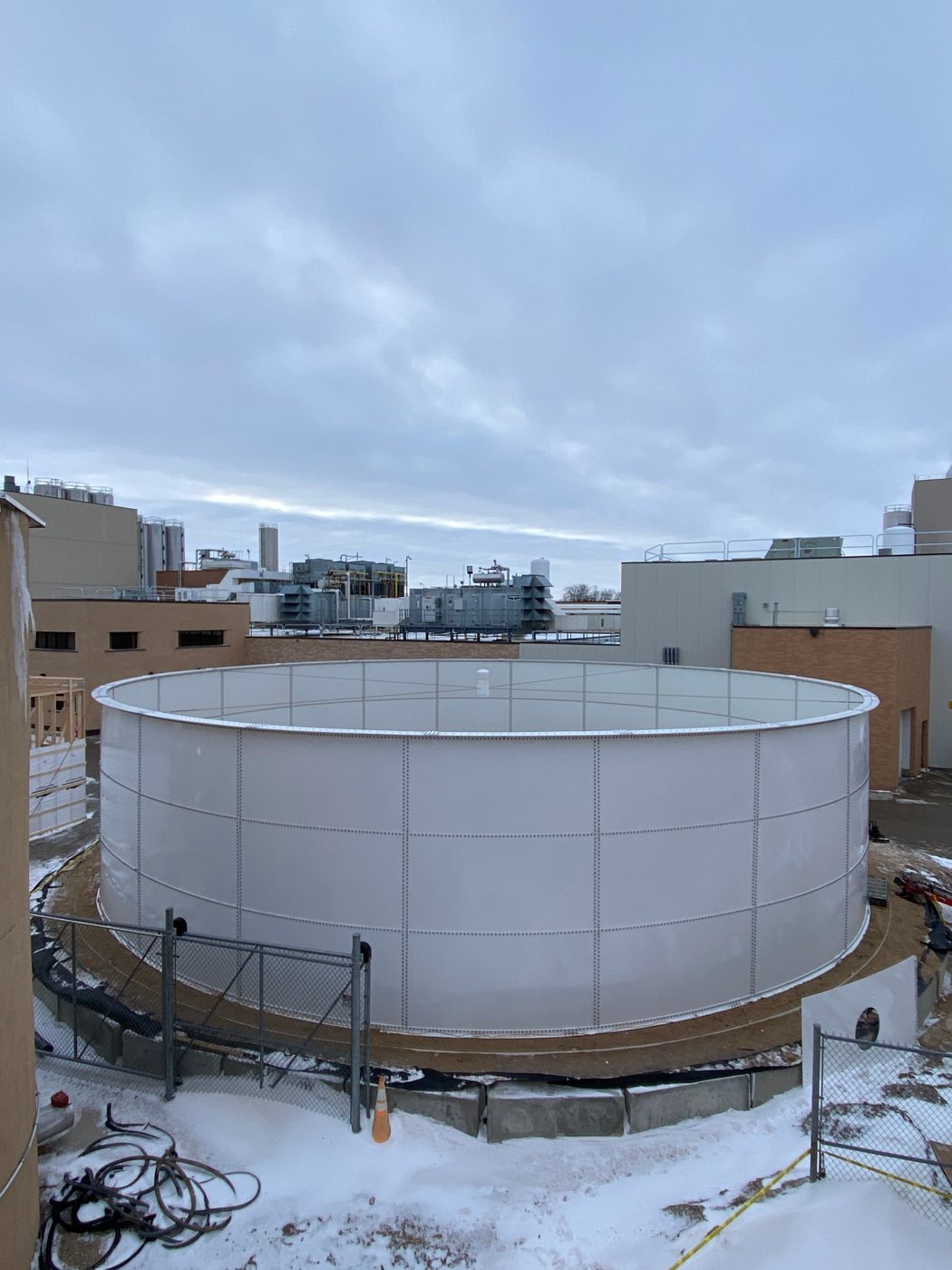

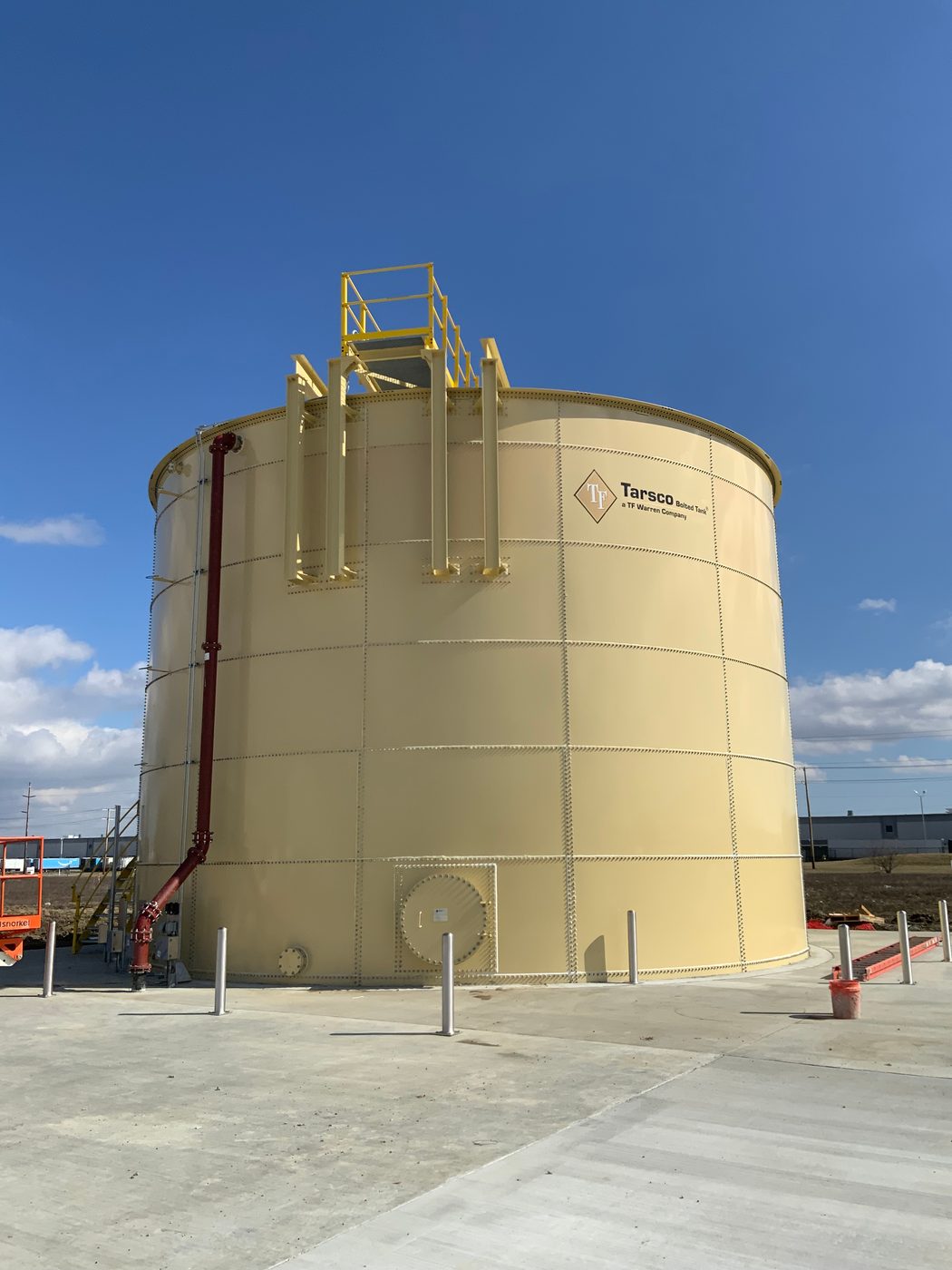

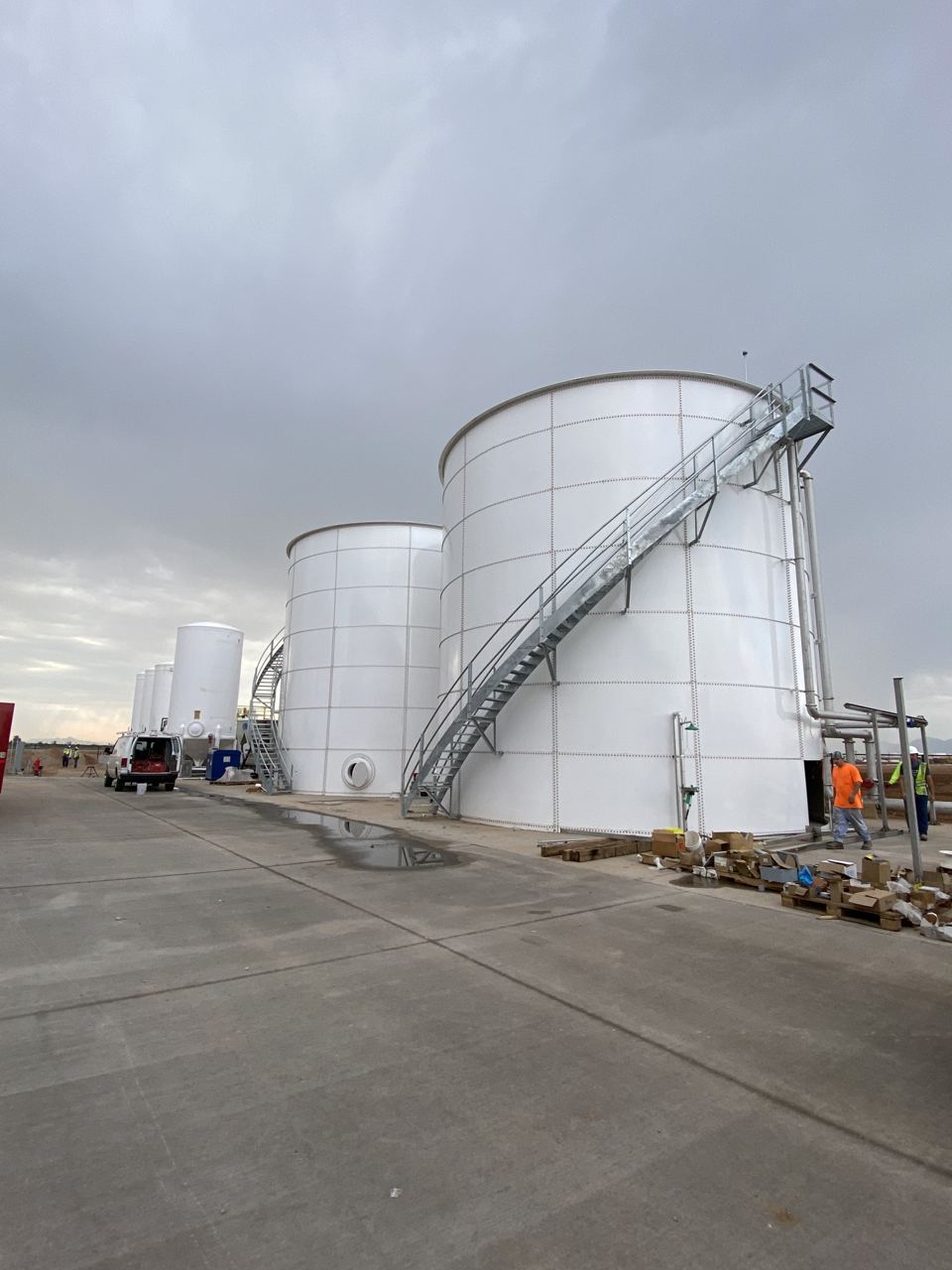

Bolted steel tanks installed across water, wastewater, and industrial sites nationwide — from foundation pour to final walkdown.

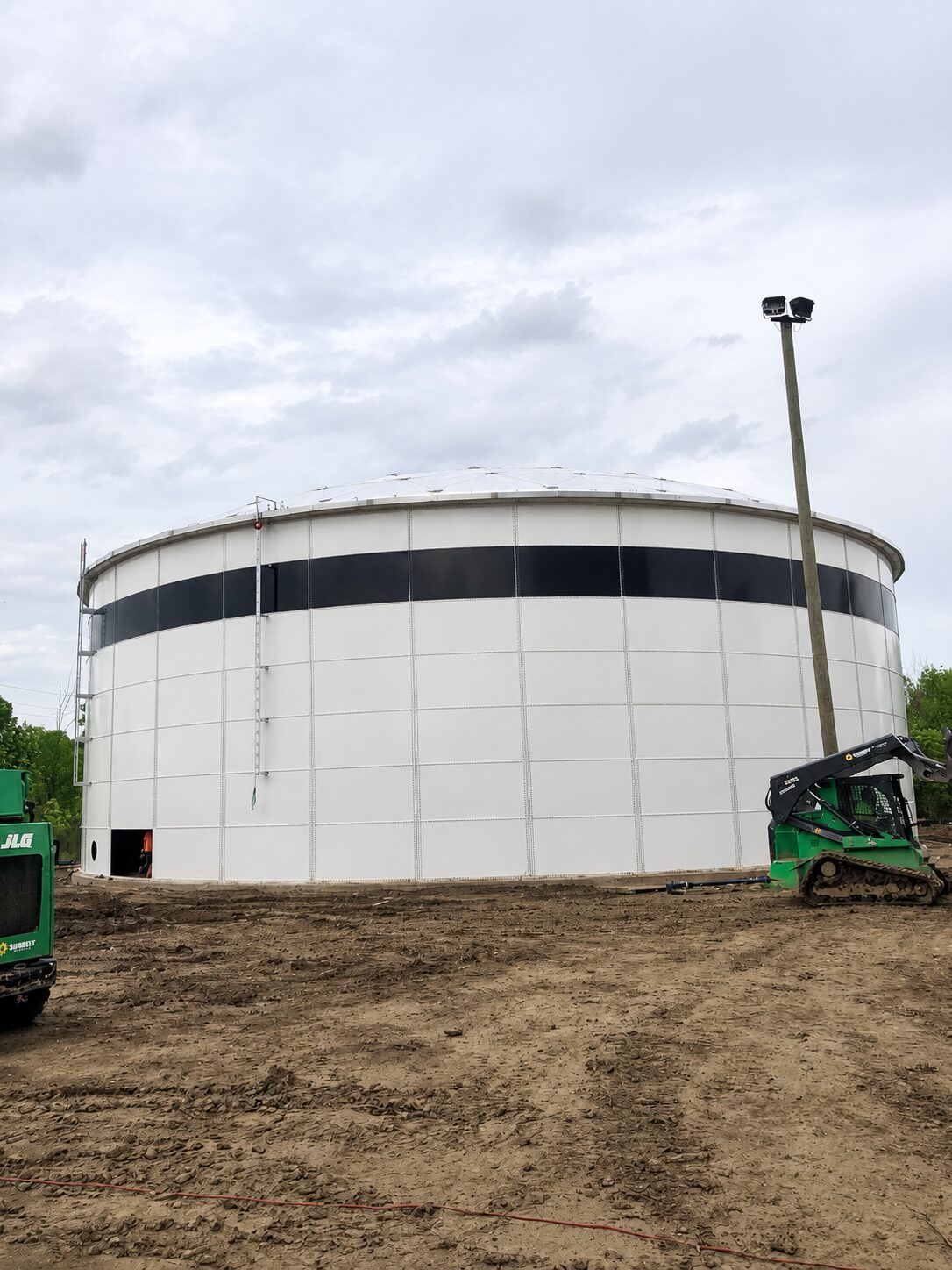

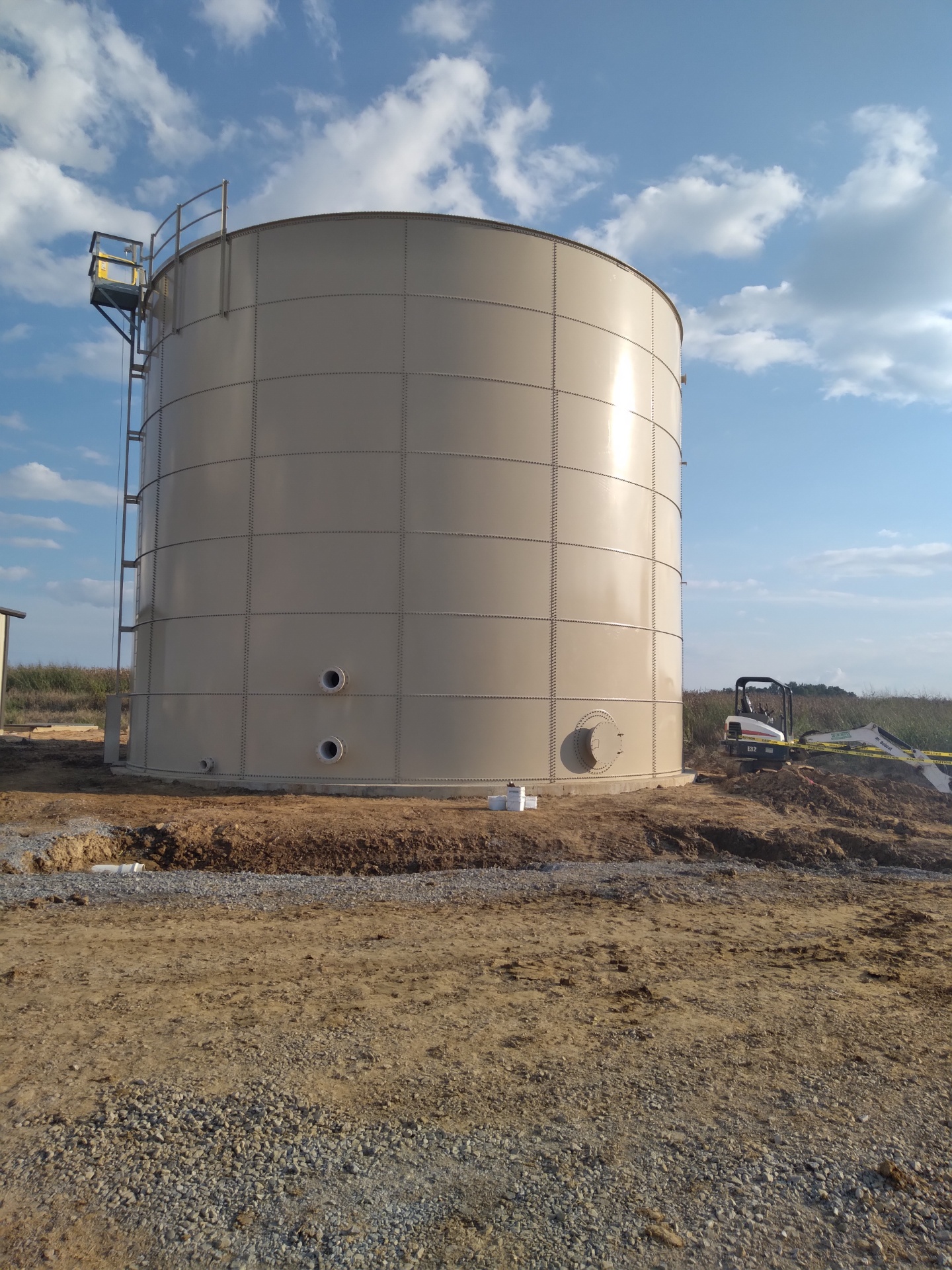

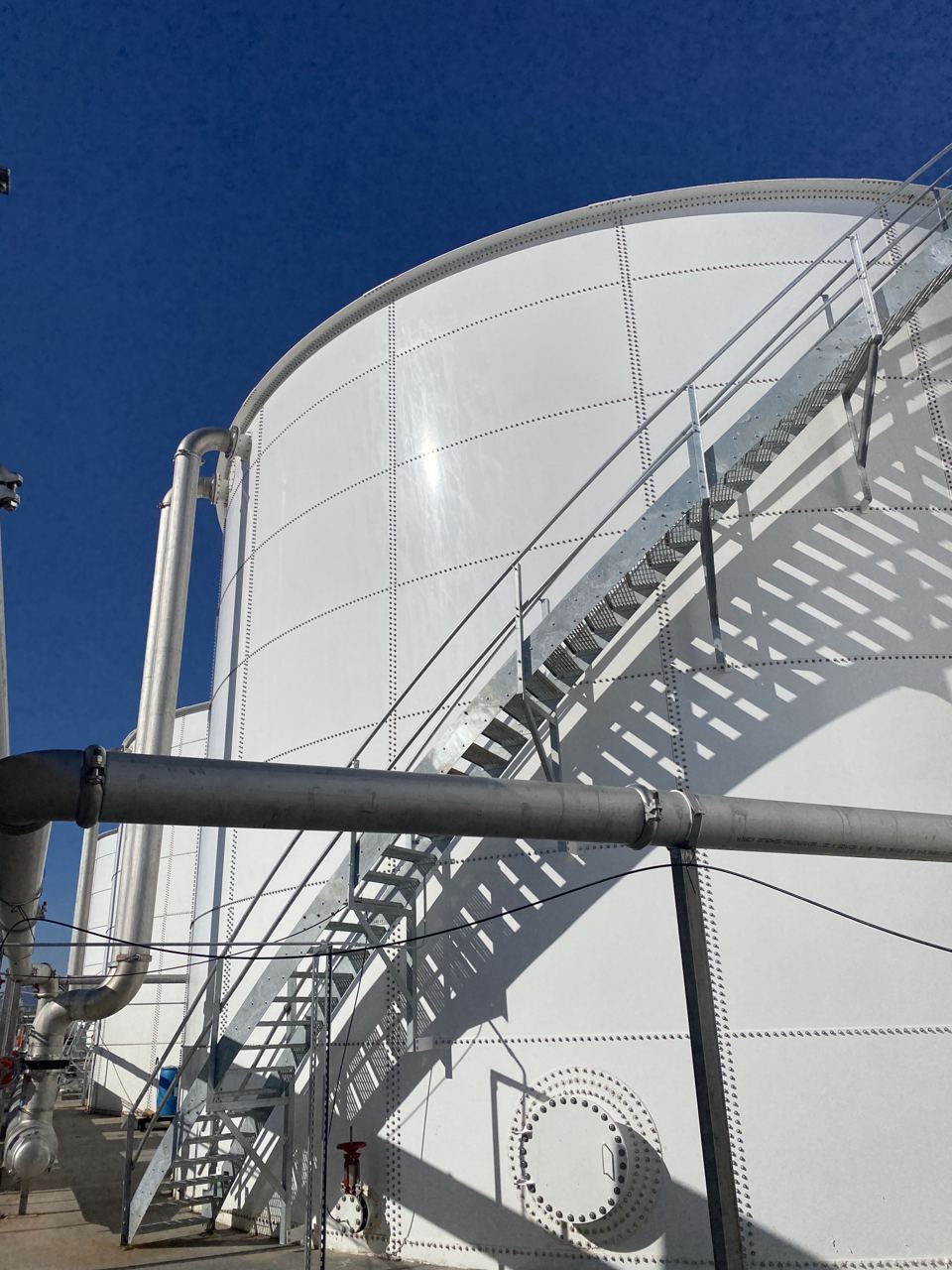

Bolted steel tanks with exterior stair access and site piping

Frequently Asked

Answers before you submit.

Match the material to the service. Fusion-bonded epoxy is the workhorse for water, raw water, and moderate process duty where a 20–30 year life is acceptable and first cost matters. Stainless is for chloride-bearing, food-grade, or biopharma chemistry, or any time a 50+ year horizon with no coating at all justifies the premium. Tell us the service chemistry, pH, and temperature and we will spec the right one.

304 is the default for food, dairy, pharma, and clean industrial service. 316 adds molybdenum for meaningfully better chloride-pitting resistance. The upgrade pays anywhere chlorides are present — brackish water, brine, deicing-salt exposure, or certain pharmaceutical processes. Unsure? Share the service chemistry and we will spec it.

Instant pricing is order-of-magnitude — typically within ±15% of refined pricing for standard configurations on accessible sites. Freight zone, foundation soil, prevailing wage, code complexity, and steel-market timing drive the variance. Submission triggers a 24-hour engineering refinement to a hard number.

Yes. Every tank ships with PE-stamped foundation, shell, anchor, and accessory drawings, routed through the licensed engineer for your state. Full submittal package typically runs two to three weeks after PO.

Both. We supply tank-only when you have an erector under contract, and supply-and-erect when you want single-point accountability. Coatings, foundations, dome covers, and accessories all bundle into one scope.
